Brand Name : Kedel
Model Number : KD-2001
Certification : ISO9001:2015,SGS,
Place of Origin : Sichuan, China
MOQ : 20 Piece/Pieces
Price : $0.60 - $18.00 / Piece
Payment Terms : T/T,L/C,Western Union,MoneyGram
Supply Ability : 2000 pcs per months
Packaging Details : box +carton
Product Name : round bars solid carbide rods tungsten carbide rods
Size : Dia3x330-Dia30x330
Grade : K05/K10/K20/K30
Advantage : HIP Sintering, long lifespan
Appplication : making drills,mold punches, milling cutter,end mills
Surface : Ground/unground
Service : customized available
Performance : Wear Resistant\rustResistant
Tungsten carbide raw material 10% cobalt tungsten alloy carbide rod stock D8x60mm
We manufactured and stocked a large range of tungsten carbide rod with or without hole for you. Our Diameter from 0.3mm to 40mm, the inner hole can be 0.1mm min length in 310mm, 330mm or 340mm, or any length. Grade inYL10.2, K10, K20 K30, K35 or etc.
Diameter(mm) | Length(mm) | Tolerance of D |
---|---|---|
1-3mm | 330 | h5/h6 |
4 | 330 | h5/h6 |
5 | 330 | h5/h6 |
6 | 330 | h5/h6 |
7 | 330 | h5/h6 |
8 | 330 | h5/h6 |
9 | 330 | h5/h6 |
9.5 | 330 | h5/h6 |
10 | 330 | h5/h6 |
11 | 330 | h5/h6 |
12 | 330 | h5/h6 |
13 | 330 | h5/h6 |
14 | 330 | h5/h6 |
15 | 330 | h5/h6 |
16 | 330 | h5/h6 |
17 | 330 | h5/h6 |
18 | 330 | h5/h6 |
19 | 330 | h5/h6 |
20 | 330 | h5/h6 |
....... | 330 | h5/h6 |
37 | 330 | h5/h6 |
We are able to help you customized various diameter and length carbide rod. gound or unground both available. We generally have inventory size from Dia1mm to Dia20mm with Length 300mm/330mm
Some grade information for reference
Grade | Density(g/cm3) | Hardness (HRA) | T.R.S (N/mm2) | Composition(%) | Grain Size (μm) | ISO |
---|---|---|---|---|---|---|
YL10.2 | 14.4-14.6 | 92.5-92.8 | 3800 | 10%Co+90%WC | 0.6 | K25-K35 |
YG8 | 14.65-14.85 | 89.5 | 2320 | 8%Co+92%WC | 0.8-1.2 | K30 |
YG6 | 14.85-15 | 90 | 2150 | 6%Co+94%WC | 0.8-1.2 | K20 |
YG12X | 14.3-14.5 | 92 | 2500 | 12%Co+88%WC | 0.6-0.8 | >|
YG10X | 14.3-14.7 | 90 | 2200 | 10%Co+90%WC | 0.6-0.8 | K35 |
YG15 | 13.9-14.2 | 87 | 2100 | 15%Co+85%WC | 0.8-1.2 | >
Other grade and dimension are also available for choosing based your specific application. please contact us at any time
tungsten carbide rods process, to ensure high quality, we commit our customers that:
![]() |

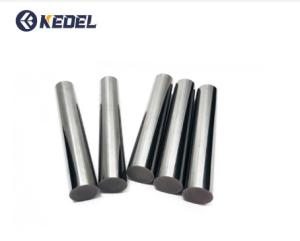

YG10 Tungsten Carbide Round Bars 10mm to 330mm HIP Sintering Images |
